Symmetric reductions
CONCENTRIC REDUCTIONS according to DIN 2616-2, PN-EN 10253-2 Typ A, PN-EN 10253-2 Typ B,
Materials: P235GH - ST35.8, 15Mo3 - 16Mo3, 13CrMo4-5, 10CrMo9-10, 14MoV6-3, X10CrMoVNb9-1, L360NB – P355NL1 – P355NH,
1.4301, 1.4306-1.4307, 1.4404, 1.4541, 1.4571
Sizes in the warehouse: 15 - 600
Available sizes: 15 - 1200
CONCENTRIC REDUCTIONS according to ANSI B16.9
Materials: A234 WPB, A234 WP11, A420 WPL6, X52, WPHY,
304, 304L, 316L, 321, 316Ti.
Sizes in the warehouse: 15 - 600
Available sizes: 15 - 800
REDUCTIONS according to KER and to the drawing

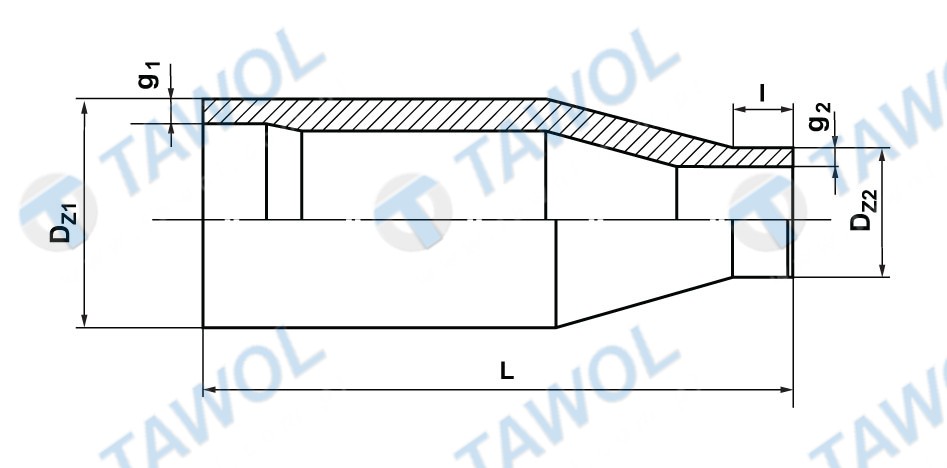

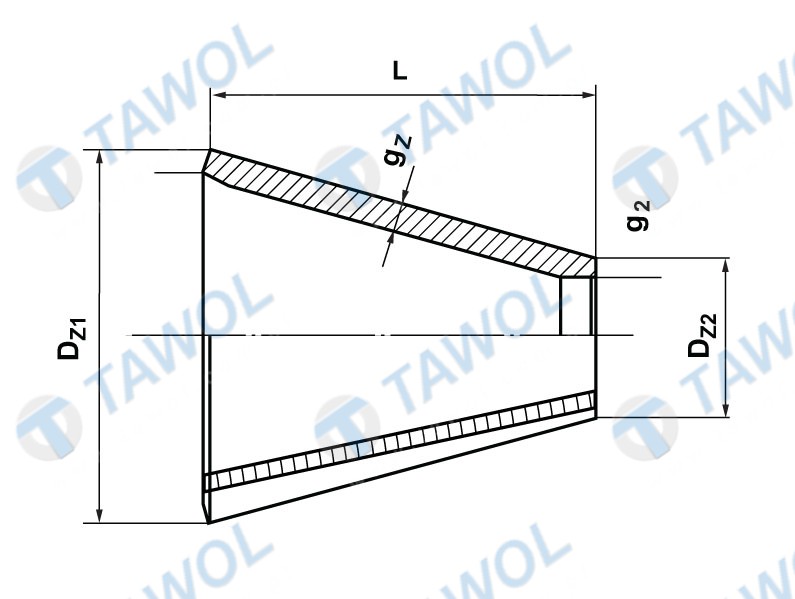

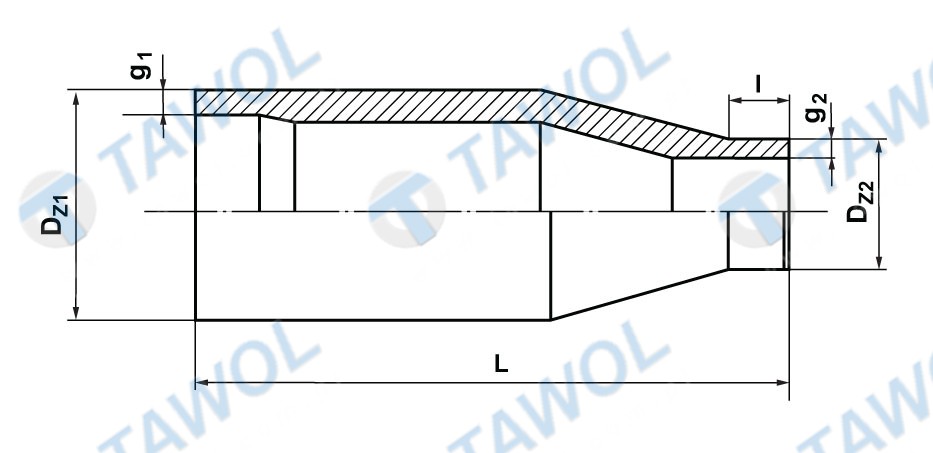

- coiled symmetrically KER 81/2,12
- lapped KER 81/2,13
- coiled asymmetrically KER 81/2,14
- turned KER 81/2,15
- crimped KER 81/2,16
Materials according to client’s requirements and availability: - on request
Available sizes: - on request
We also offer reductions according to client’s requirements made of pipes, pipes coiled from metal sheet (diameter according to the guidelines) and reductions coiled from cut metal sheet. Reduction length may by untypical – maximally shortened or lengthened. Non-standard sizes with big passes or with specified diameters of connections, pipes and other holes. Limits to making a reduction are defined by machines and maintenance of high quality of the products we offer.
