Elbows

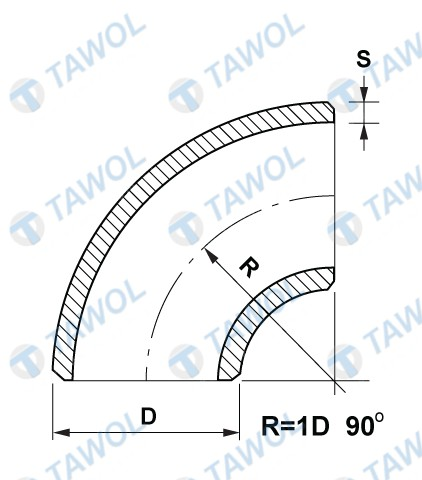

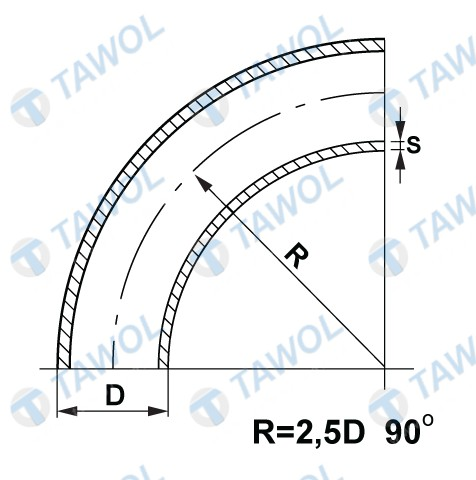

ELBOWS ACC. TO DIN 2605-1, DIN 2605-2 1 D (BA2), 1,5 D (BA3), 2,5 D (BA5), 5 D




Materials: ST 37.0, S235, P235 TR1/TR2, P235GH - ST35.8,
P265GH TC1/TC2 - ST45.8 I / III, 15Mo3 - 16Mo3, 13CrMo4-5,
10Cr Mo9-10, L360NB – P355NL1 – P355NH,
1.4301, 1.4306-1.4307, 1.4404, 1.4541, 1.4571
Sizes on stock: 15 - 800
Available sizes: 15 - 2400

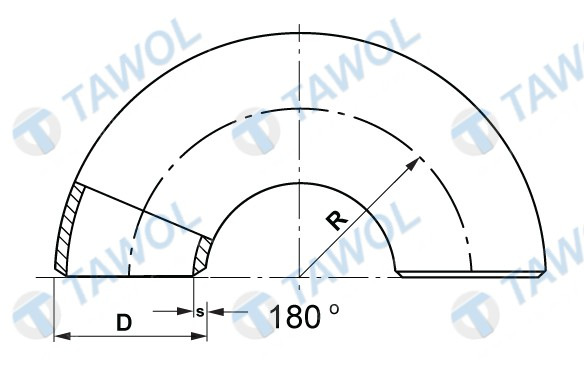

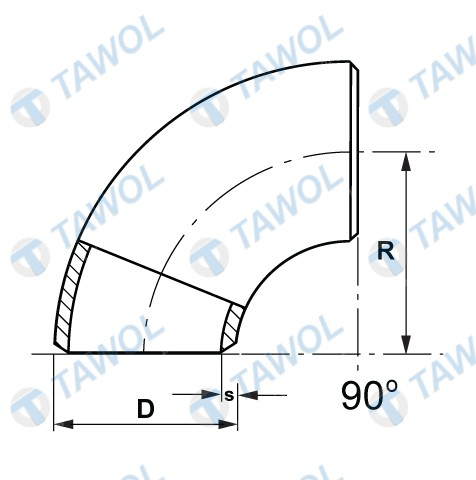

ELBOWS ACC. TO ANSI B16.9 1 D (SR), 1,5 D (LR), 2,5 D, 5 D




Materials: A234 WPB, A234 WP11, A420 WPL6, X52, WPHY,
304, 304L, 316L, 321, 316Ti
Sizes on stock: 15 - 600
Available sizes: 15 - 1200






The piping systems in modern companies and cities are very complex, and what's more, they are being constantly expanded. In order to ensure a secure expansion of the system, only the best materials that can withstand various conditions for many years without the need for emergency repairs or special maintenance should be used.

In our offer, you will find elbows produced according to many standards, such as PN-EN 10253-2 Type A, PN-EN 10253-2 Type B, PN-EN 10253-4 Type A, PN-EN 10253-4 Type B, DIN 2605-1, DIN 2605-2, or ANSI B16.9. They are an essential part of most pipelines. With them, every pipeline can be expanded according to the needs of the project/investment.

Our elbows are made of materials such as, e.g. ST 37.0, S235, P235TR, P235GH, P265GH, P355NL1, L360NE, P460NE, P460QB, P460NB, 16Mo3, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1 or A234 WPB, WP11, WP12, WP22, WPL6, and many others. The elbows can be made of most of the stainless and heat-resistant materials available on the market; moreover, we accept individual orders for other steels, if required by the customer.

Our assortment includes bends of various sizes, which makes it much easier to choose the product best suited to your needs. In addition, they have various radii sizes – for those created in accordance with EN 10253-2 type A and B:

1D (model 2D); 1.5D (model 3D); 2.5D (model 5D)

for ANSI B16.9 these will be 1D (SR), 1.5D (LR), 2.5D, 5D. A wide range of sizes will certainly be useful in many installations.

They can be used to safely transport, among others, gases, liquids, mining fluids, industrial and foodstuffs loose materials, and ashes. Our elbows meet all the requirements and recommendations in force in the European Union, which is confirmed by the appropriate 3.1 quality certificates or, on request, the 3.2 certificate where the raw material and the finished product are controlled by external quality control (inspectors from UDT, Tüv, GL, BV, DNV, LRS) independent of the manufacturer, distributor, or dealer. If you are interested in our offer of elbows, please contact us by telephone or e-mail. We will be happy to answer all of your questions and help you choose the right product.
